Tuesday, January 17, 2012

Automotive Voltage Indicator Monitors battery voltage Three LED Display



Automotive Voltage Indicator Monitors battery

Parts:

R1,R3,R6________1K   1/4W Resistors
R2____________100K 1/4W Resistor
R4,R5,R7,R8_____3K3 1/4W Resistors

D1__________Red LED (Any dimension and shape)
D2________Amber LED (Any dimension and shape)
D3,D4,D5_____1N4148 75V 150mA Diodes
D6_________BZX79C10 10V 500mW Zener Diode
D7________Green LED (Any dimension and shape)
D8,D9________1N4148 75V 150mA Diodes
D10________BZX79C12 12V 500mW Zener Diode

Q1,Q2_________BC547 45V 100mA NPN Transistors
Q3____________BC557 45V 100mA PNP Transistor




Comments:

Connecting this circuit to the battery of your vehicle, you will always know at a glance the approximate voltage available.
An indication of battery voltage is useful to the motorist for monitoring the battery's capacity to deliver current, and as a check on the efficiency of the dynamo or alternator.
Threshold voltages of the LEDs are set by means of two Zener Diodes (D6 & D10) plus two further Diodes wired in series (D4, D5 and D8, D9 respectively) adding a step of about 1.3V to the nominal Zener voltage.

LED indication:



  • Red LED D1 is on when battery voltage is 11.5V or less. This indicates a low battery charge.
  • Amber LED D2 is on when battery voltage is comprised in the 11.5 - 13.5V range. This indicates that the battery is good if the motor is off. When motor is running, this indicates no charge from dynamo or alternator.
  • Green LED D7 is on when battery voltage is 13.5V or more. This indicates a normal condition when motor is running and dynamo or alternator are charging.

source: redcircuits.com
read more

Wednesday, January 11, 2012

BH1417 USB FM Transmitter

Here's BH1417 USB FM Transmitter with built-in PLL circuit. Its low-frequency signal is converted into high-frequency, which can take any audio device with FM radio (stereo, car CD, MP3, DVD player, etc.), as a normal radio station. Transmitter power is sufficient for reliable reception of its signal within a few tens of meters. The basis of the device is a chip BH1417F, included in a typical scheme. This device contains all the necessary circuitry to generate a composite stereo signal c of the pilot tone, the RF generator with PLL and power amplifier. A detailed description is given in.
read more

Sunday, January 8, 2012

0 44dB RF Attenuator

Anyone who has to reduce the amplitudes of RF signals in a controlled manner needs an attenuator. Linearly adjustable attenuation networks using special PIN diodes are available for this, but they require quite intricate control circuitry. A simpler solution is to use an integrated attenuator that can be switched in steps. The RF 2420 is an IC built using gallium-arsenide (GaAs) technology, which works in the frequency range between 1 MHz and 950 MHz. It can thus be used as an attenuator for cable television signals, for example. The attenuation can be set between 0 and 44 dB in 2-dB steps. An insertion loss of 4 dB must also be taken into account. This base attenuation can be measured in the 0-dB setting, and it forms the reference point for switchable attenuation networks that provide 2, 4, 8, 10 and 20 dB of attenuation.

0-44dB RF Attenuator circuit diagramThese are all controlled by a set of 5 TTL inputs. The control signals must have Low levels below 0.3 V and High levels of at least +2.5 V. The RF 2420 works with a supply voltage between +3 V and +6 V, with a typical current consumption of 4 mA. A power-down mode, in which the current consumption drops to 0.8 mA, can be activated by removing power from the bussed VDD- pins. The sample circuit diagram for the RF 2420 shows that the only external components that are needed are decoupling capacitors. The coupling capacitors at the input and output determine the lower operating frequency limit. The table lists possible capacitor values. The input and output are matched to 50-ohm operation, but they can also be used with 75-ohm cables with a small increase in reflections. The RF 2420 is available in a 16-pin SOP-16 SMD package. Its data sheet can be found at ww.rfmd.com.
read more

Friday, January 6, 2012

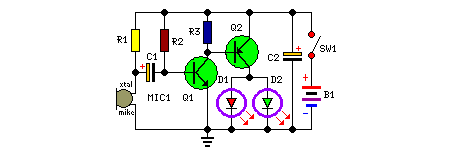

BC557 based Flashing Eyes circuit with explanation


 BC557 based Flashing Eyes circuit with explanation
Two-LED-eyes follow the rhythm of music or speech, 3V Battery-operated device suitable for pins or badges
This circuit was purposely designed as a funny Halloween gadget. It should be placed to the rear of a badge or pin bearing a typical Halloween character image, e.g. a pumpkin, skull, black cat, witch, ghost etc. Two LEDs are fixed in place of the eyes of the character and will shine more or less brightly following the rhythm of the music or speech picked-up from surroundings by a small microphone. Two transistors provide the necessary amplification and drive the LEDs.
Parts:
R1 = 10K
R2 = 1M
R3 = 1K
C1 = 4.7uF-25V
C2 = 47uF-25V
D1 = 2mm LED
D2 = 2mm LED
Q1 = BC547
Q2 = BC557
B1 = 3V Battery
SW1 = SPST Switch
MIC1 = Electret Mic
Notes:
* Any general purpose, small signal transistor can be used for Q1 and Q2, but please note that R3 could require adjustment, depending on the gain of Q1. For medium gain transistors, the suggested value should do the job. High gain transistors will require a lower value for R3, i.e. about 390 – 470 Ohm. You can substitute R3 with a 1K Trimmer in order to set precisely the threshold of the circuit.
* Any LED type and color can be used, but small, 2mm diameter, high efficiency LEDs will produce a better effect.
* No limiting resistors are required for D1 and D2 even if this could seem incorrect.
* Stand-by current consumption of the circuit is about 1.5mA.
* Depending on dimensions of your badge, you can choose from a wide variety of battery types:
* 2 x 1.5 V batteries type: AA, AAA, AAAA, button clock-type, photo-camera type & others.
* 2 x 1.4 V mercury batteries, button clock-type.
read more

Monday, January 2, 2012

12V battery level indicator circuit LED bargraph


LM3914.


The heart of this circuit is the LM3914 from national semiconductors. The LM3914 can sense voltage levels and can drive a display of 10 LEDs in dot mode or bar mode. The bar mode and dot mode can be externally set and more than one ICs can be cascaded together to gat an extended display. The IC can operate from a wide supply voltage (3V to 25V DC). The brightness of the LEDs can be programmed using an external resistor. The LED outputs of LM3914 are TTL and CMOS compatible.

Description.


In the circuit diagram LEDs D1 toD10 displays the level of the battery in either dot or bargraph mode. Resistor R4 connected between pins 6,7 and ground controls the brightness of the LEDs. Resistors R1 and POT R2 forms a voltage divider network and the POT R2 can be used for calibration.

The circuit shown here is designed in order to monitor between 10.5V to 15V DC. The calibration of the circuit can be done as follows. After setting up the circuit connect a 12V DC source to the input. Now adjust the 10K POT to get the LED10 glow (in dot mode) or LEDs up to 10 glow (in bar mode). Now decrease the voltage in steps and at 10.5 volts only LED1 will glow. Switch S1 can be used to select between dot mode and bar graph mode. When S1 is closed, pin9 of the IC gets connected to the positive supply and bar graph mode gets enabled. When switch S1 is open pin9 of the IC gets disconnected to the positive supply and the display goes to the dot mode.

With little modification the circuit can be used to monitor other voltage ranges. For this just remove the resistor R3 and connect the upper level voltage to the input. Now adjust the POT R2 until LED 10 glows (in dot mode). Remove the upper voltage level and connect the lower level to the input. Now connect a high value POT (say 500K) in the place of R3 and adjust it until LED1 alone glows. Now remove the POT, measure the current resistance across it and connect a resistor of the same value in the place of R3. The level monitor is ready.

Circuit diagram of battery level indicator using LM3914.



Battery level indicator circuit using LM3914

Cascading two LM3914.

Two or more LM3914 ICs can be cascaded together to get an extended display. The schematic of two LM3914 ICs cacaded together to get a 20 LED voltage level indicator is shown below.

20 LED voltage level indicator
Cascading two LM3914

Few other battery level related circuits that you may like.


1.Simple battery level indicator : This circuit can be used for monitoring the level of 3V batteries. The circuit is based on MN13811G from Panasonic. MN13811G is a CMOS  voltage detector IC that can be used a variety of voltage monitoring applications. In the circuit LED D1 will flash when ever the battery voltage drops below 2.4 volts.

2.3 LED battery level indicator : A 3 LED battery level indicator that can be used for monitoring the voltage level of 12V automobile battery is shown here. Three states of the battery ie; below 11.5V, between 11.5 and 13.5 and above 13.5 are shown by the glowing of LEDs.

3. Flashing battery monitor : This circuit can be used for monitoring the voltage level of 6 to 12V batteries. The circuit is based on transistors and the voltage level at which the LED starts flashing can be adjusted by using a potentiometer.
